Foamed PVC Core Aluminium Composite Panels
What is Alfoampoly?

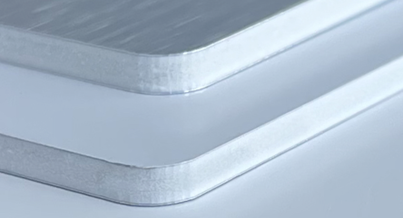

Alfoampoly is a kind of panel with two sheets of aluminium skin, bonded with a foamed PVC core, available in wide range of colors, mirror finishes, brushed finishes etc., painted with digitally printing-friendly polyester with a limited 5-year external guarantee.
Features & Advantages
- Lighter weight
- Environmental-friendly
- Weather resistance
- Easy-peel film
- European Fire Rated B s1, d0
- Easy fabrication & installation
- Smooth & flat surface
- Excellent UV printing
- Multiple Application
- Cost-effective
Typical Weights
| Panel Thickness (mm) | Aluminum Thickness (mm) | Weight (Kgs/M2) | Weight (lbs/M2) |
|---|---|---|---|
| 3 | 0.15 | 2.4 | 5.30 |
| 4 | 0.21 | 3.4 | 7.50 |
| 6 | 0.30 | 4.9 | 10.80 |
Portfolio
| Product | Aluminium Thickness (mm) | Panel Thickness (mm) | Width (mm) | Color |
|---|---|---|---|---|
| Alfoampoly Premium | 0.30 | 3~6 | 1220 | Solid & Metallic, Brushed & Mirror Finishes |
| Alfoampoly Standard | 0.21 | 3~6 | 1220 | Solid & Metallic, Brushed & Mirror Finishes |
| Alfoampoly Economy | 0.15 | 3~6 | 1220 | Solid & Metallic, Brushed & Mirror Finishes |
| Alfoampoly Lite | 0.08 | 3~6 | 1220 | Solid & Metallic |
